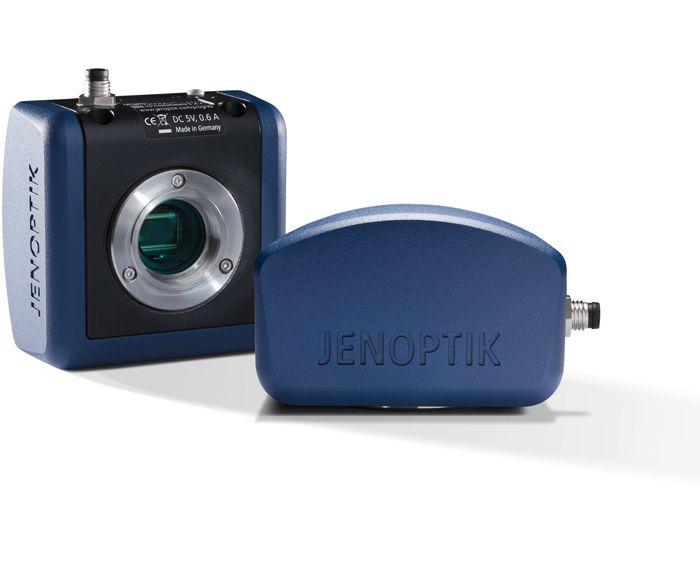

ProgRes Gryphax® Arktur

PROGRES GRYPHAX® ARKTUR

Recommended for routine microscopy applications that require fast live imaging with short exposure times and brilliant color reproduction.

Jenoptik's PROGRES GRYPHAX® ARKTUR incorporates SONY’S back-illuminated CMOS sensor technology resulting in higher sensitivity and lower random noise which produces brilliant color images even in low light applications.

  • Flexibility - programmable resolutions 8 & 2 MPix
  • High image quality in Full HD & 8.2 MPix, pixel size 2.4 x 2.4 µm, 10 Bit, dynamic range 66 dB, color camera.
  • Versatility - WIN, MAC and Linux, free SDK available, 3rd party software support, exposure up to 10 seconds and gain up to 10
  • Ease of use - free PROGRES GRYPHAX® microscope camera software, large field of view 2/3", 50 fps @ full HD, 30 fps @ 4K (8 Mpix) and no external power supply needed via USB 3
  • User control - on/off switch with illuminated status LED
  • Compatibility - optical interface via universal C-mount (economical 1x C-mount recommended)
  • Stability - SONY sensor – back illuminated
  • Software updates free of charge
  • Made in Germany
  • Download technical dataAdobe PDF
  • Download system requirementsAdobe PDF
  • View Key Facts
Specifications
Image sensor:Sensor type: SONY back-illuminated CMOS | sensor square: 2/3” | diagonal: 10.58 mm
Resolution:Programmable resolutions 8 & 2 Mpix
Color / Monochrome:Color
Pixel size [W x H]:2.4 x 2.4 μm
Dynamic range:66 dB
Exposure time min.-max.:10 μs - 10 s
Max. frame rate:1920 x 1080 pixels (50 fps) | 3840 x 2160 pixels (30 fps)
Data interface:USB 3.0, no extra power supply needed
Optical interface:C-mount
Dimensions (L × W × H):85mm x 75mm x 50 mm
Weight:400 g
Requirements:See system requirements PDF above
Warranty:2 years
