Labomed Lx 500

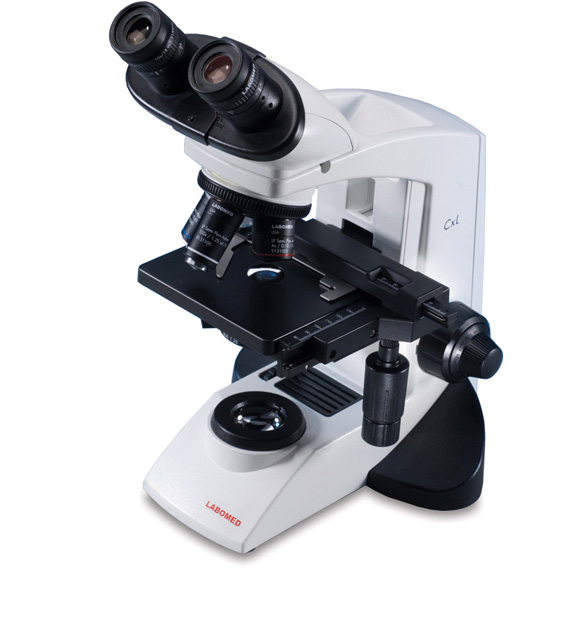

Labomed CxL

Recommended for entry level life science courses

The Labomed CxL is a rugged yet compact student microscope great for entry level university classes. Ideal for tight spaces or those on tight budgets.

  • Student-friendly compact and robust microscope
  • Ideal for tight spaces and tight budgets
  • Quality affordable optical performance
  • Maintenance-free optical and mechanical components for a lifetime of trouble-free use
  • Rotating head allows for easy storage
  • Save time and money with optional eco-friendly LED illumination system
  • Create a digital wireless microscope by adding a Wi-Fi camera
  • MHEC eligible.

Compatible products: Moticam X2, Moticam 580 HD

Specifications
Stand:Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability
Viewing Bodies:45° inclined, 360° 'captive' rotation, interpupillary distance 54-74mm
Eyepiece:Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating
Nosepiece:Quadruple nosepiece turret (ball bearing type) with rubber grip
Objectives:LP series DIN semi-plan achromatic objectives 4x, 10x, 40x (spring-loaded), 100x (spring-loaded, oil), antifungal
Mechanical Stage:Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm; low drive movement controls, single specimen holder
Condenser:Sub stage Abbe condenser NA 1.25 with aspheric lens; iris diaphragm with snap-in blue filter; rack and pinion movements on metal guides
Focusing:Co-axial coarse and fine focusing on all metal ball drive system for smooth operation; brass rack and pinion stage drive; fine drive movement 0.3mm/rotation
Illumination:LED or halogen 6V-20W illumination with variable illumination control; up to 100,000 hours of LED life and 2,000 hours of halogen lamp life
Electronics:Universal input 100V- 240V AC, 50/60Hz, built in voltage stabilizer
Warranty:5 year mechanical, 1 year electrical
Certifications:ISO 9001, ISO 13485, UL listed, CE approved
