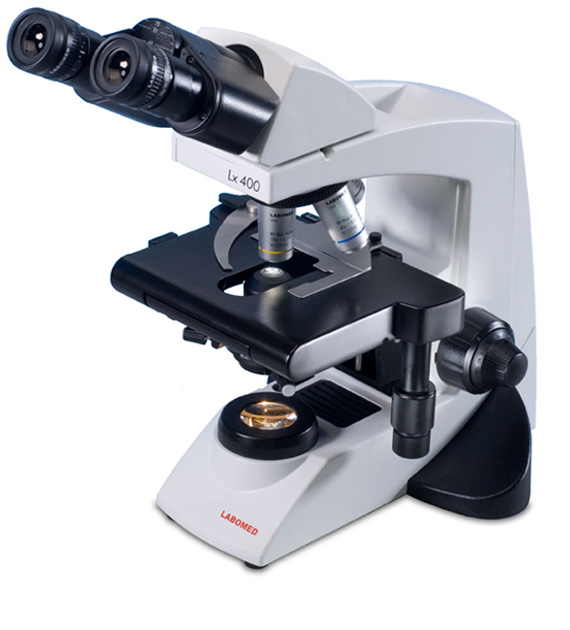

Labomed Lx 400

Labomed Lx 400

Recommended for intermediate to more advanced life science courses

The Labomed Lx 400 is an easy to use, rugged, and reliable student microscope with quality optical and mechanical components for a strong performance for the life of your microscope.

  • Easy to use rugged and reliable student microscope
  • Quality optical and mechanical components for robust performance
  • Student-friendly features, rackless stage, gentle close slide holder
  • Save time and money with optional LED illumination systemgreen lighting solutions
  • Makes storage easier with smooth rotating head - no knobs to turn or tools needed
  • Easily add a camera for live presentations or digital capture
  • MHEC eligible.

Compatible products: ProgRes® SpeedXT core 3, Prog­Res® SpeedXT core 5, Moticam 580 HD

Specifications
Stand:Single mold sturdy stand with anti-rust materials; extended base for better stability
Viewing Bodies:Siedentopf binocular or trinocular inclined 30°, rotatable 360°, inter pupillary distance 48-75mm
Eyepieces:Spring-locked, wide field 10x/20mm focusable eyepieces with foldable eye-guards, anti-fungal coating
Nosepiece:Reverse angle quadruple nosepiece (ball bearing type) with click stops and rubber grip
Objectives:RP series infinity corrected DIN plan achromatic objectives 4x, 10x, 40x (spring-loaded), 100x (spring-loaded, oil), anti-fungal coating
Mechanical Stage:Rackless X-axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm; low drive right hand movement controls; hard coated surface for scratch resistance; double specimen holder clip
Condenser:Sub‐stage Abbe condenser NA 1.25 with blue filter (halogen only), iris diaphragm; rack and pinion movements on stainless steel guides
Focusing:Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination:Halogen 6V-20W/30W or LED (built in rechargeable battery) illumination with variable illumination control; up to 2,000 hours of halogen lamp life and 100,000 hours of LED lifegreen lighting solutions
Electrical:Universal input 100V - 240V AC, 50/60Hz; built in voltage stabilizer
Accessories:Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth
Warranty:5 year mechanical, 1 year electrical
Certifications:ISO 9001, ISO 13485, UL listed, CE approved
