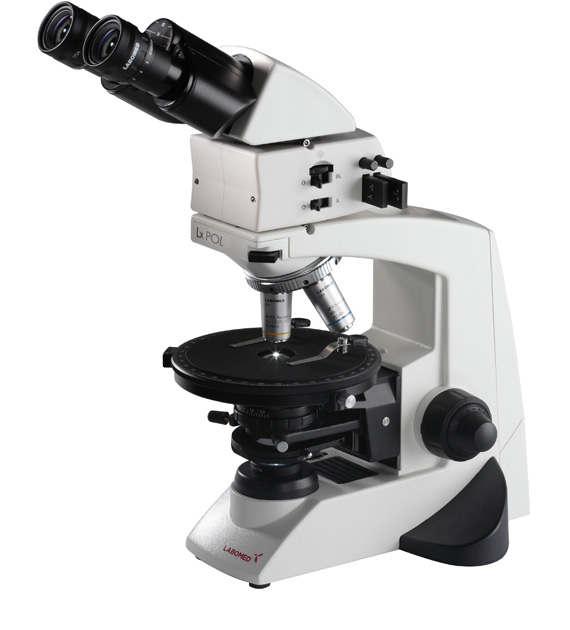

Labomed Lx POL

Labomed Lx POL

Recommended for students and instructors of earth sciences, material sciences and forensics

The highly streamlined Lx POL student polarizing microscope delivers reliability and ease of use through precision mechanical engineering at an affordable price.

  • Easy to use rugged and reliable student polarizing microscope
  • Individually centerable strain-free objectives for clear, crisp images
  • Max lite coated optics is anti-reflective and scratch resistant
  • Fixed vertical cross hair in the eyepiece maintains orientation when adjusting eye tubes
  • Analyzer-Bertrand lens module for precise conoscopic images
  • Easily add a camera for live presentations or digital imaging
  • MHEC eligible.

Compatible products: ProgRes® SpeedXT core 3, Moticam 580 HD

Specifications
Stand:Single mold sturdy stand with anti rust materials; extended base for better stability
Viewing Bodies:Siedentopf binocular or trinocular head; 30° inclined; 360° rotatable; IPD 52-75 mm
Eyepiece:Focusable wide field eyepiece 10x/20mm with foldable eye guard; with factory installed fixed-verticality crosshair in one eyepiece
Nosepiece:Reverse angle quadruple nosepiece (ball bearing type) with click stops, featuring independently centerable objectives
Analyzer:Adjustable analyzer with centration screws; focusable Bertand lens; slider slots and spare slider holders; comes equipped with Lambda, 1/4 Lambda, and quartz wedge plates
Polarizer:Rotating polarizer with orientation markers at every 90°
Objectives:SF series infinity corrected DIN plan chromatic objectives: 4x(WD 30.0mm), 10x(WD 7.00mm), 40x(WD 0.65 mm); optional 100x(WD0.23mm) spring-loaded, oil objective
Circular stage:360° rotatable stage, 160mm with one degree increments and spring clips
Condenser:0.9 NA centerable strain free condenser
Focusing:Feather touch attrition - free coaxial coarse and fine focus adjustment with auto tension adjustment for longer life and ultra smooth movement; weighted fine focus
Illumination:Halogen 6v-30W with one installed bulb; Koehler field diaphragm
Electrical:Universal input 100V - 240V AC, 50/60Hz; built in voltage sensing power supply
Warranty:5 year mechanical, 1 year electrical
Certifications:ISO 9001, ISO 13485, UL listed, CE approved
